AIM SMARTYCAM HD 84" + 4M REV 2.1

RM 8,390.00

The Aim SmartyCam HD Rev 2.1, 84° Powerboat Video Logger Camera, is ideal for outside installation, where a wider field of vision (FOV) is needed.               ...

Add to Wishlist
Availability : In Stock Pre order Out of stock
Categories: AIM, Brands, Devices, Products
Description

The Aim SmartyCam HD Rev 2.1, 84° Powerboat Video Logger Camera, is ideal for outside installation, where a wider field of vision (FOV) is needed.




The SmartyCam HD Rev 2.1 84° Wide Powerboat Video Camera has been designed for Motorsports with a single purpose, providing great videos that include all the technical information that will help you improve your performance. All this in the most robust and reliable system ever.


Powerboat Video Camera




SmartyCam HD is Now Available in 67° and 84° Wide Angle Lenses




SmartyCam HD is Now Available in 67° and 84° Wide Angle Lenses









SmartyCam HD Rev. 2.1 Competitive Advantages









SmartyCam HD Rev. 2.1 Competitive Advantages

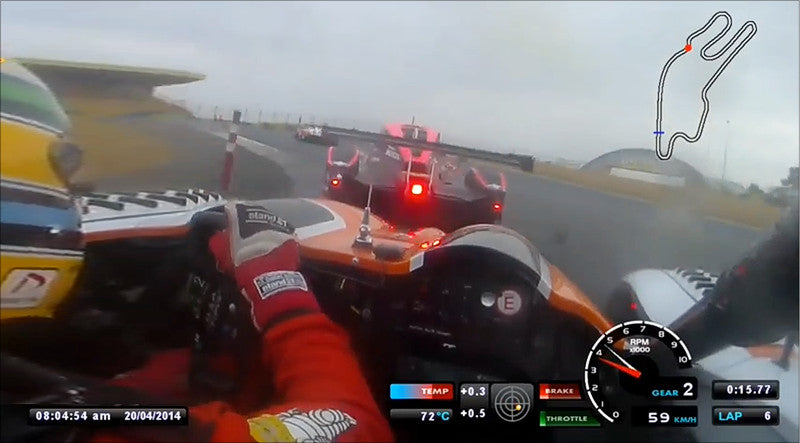

 Real Time Data Overlaid on Videos




SmartyCam HD overlays all the data you need from different sources. From GPS i.e. track map and vehicle position, as well as speed, lap and split times. From Aim loggers connected to your ECU i.e. RPM, throttle, engaged gear, acceleration, temperatures, pressures and – in presence of additional sensors – also their values. All these info will be overlaid on videos in each single point of the track.

Here is just an example among the many available:




Real Time Data Overlayed on Videos




Smartycam Motorsport Camera




Race Studio 3




Your Software for Video Configuration and Analysis
SmartyCam HD uses Race Studio 3, the powerful software which allows to configure all details of your videos and to get plenty of fun and information out of them.




Configuration




You can configure your overlays in a virtually infinite variety of modes: add your logo and the track map, and choose your graphic objects from a list of predetermined sets with same layout or even single objects from different sets. Your videos will be truly “yours” in all details, from the data to their graphic layouts.




Race Studio 3 Configuration




Race Studio 3 Configuration views




Video Analysis




The video of a whole session, once downloaded on your PC, can now be split – with a simple click – in individual videos of each lap: so that you can simultaneously watch two of them and check where you were faster or slower. The same operation can be performed with any SmartyCam HD video recorded on the same track: you will be able to compare your best lap with your friends personal best!









Video Analysis




Automatic Start & Stop




You are on the starting grid, ready to sprint, your adrenaline reaching the climax: the last thing you can worry about is… switching on the camera. You have other things to worry about. SmartyCam HD Rev2 is aware of that, that is why it switches on/off automatically and starts/stops recording the same way.




Automatic On/Off Switch




SmartyCam HD can be switched on by the logger it is connected to. Switch-off is automatic, too: simply decide after what period of non-activity the camera will switch-off. Both operations can also be carried out using the keyboard, if you prefer.




Recording




Recording can also be started/stopped automatically or via keyboard. With automatic switch-on, the camera will start recording when the speed or RPM threshold is exceeded. In this case, you simply decide how long after dropping below the selected threshold the video will automatically stop.




Automatic Start & Stop




No “wave effect” and Improved Quality with The New CMOS Sensor




Engine rumble causes vibrations, which are not a good thing for video recording. Never again will you experience that seasick “wave effect” you get when watching videos recorded by a generic camera, when the car rolls at 7000 RPM. SmartyCam HD has been designed for that environment and for those vibrations. “Wave effect” is just a memory.




No “wave effect” and Improved Quality with The New CMOS Sensor









The Global Shutter CMOS Sensor









The Global Shutter CMOS Sensor




Unlike generic multipurpose cameras, SmartyCam HD has been designed to avoid the problem of image distortion, thanks to the innovative Global Shutter CMOS sensor. The camera shutter captures the entire image at the same time, not “pixel by pixel” like traditional sensors. The result is that images are captured at once and are not affected by the vibrations that happen on a racing vehicle, which create the so-called “wave effect”.









Proprietary Lenses Designed for Motorsports




A lens specifically designed for Motorsports must be robust, must be able to work when the engine rolls 100 times per second, and have good resolution and brightness. But above all a lens designed for Motorsport must reduce distortion, which is a typical problem of lenses used by generic action-cameras: objects placed at ten metres’ distance look very far, making it impossible to accurately determine whether the track is straight or curved. SmartyCam HD telecentric lens with six elements reduces distortion to the minimum and will withstand track vibrations for years. Moreover the lenses with different HFOV’s allow a tailor-made framing in all kind of vehicles.




Which Lens?




The narrow 67° HFOV lens is preferred for closed-roof cars, as it “sees” the track just within the wind-screen pillars, reducing that unpleasant black frame around typical of generic camera on-board videos.

The wide 84° HFOV lens is specific for open-roof, formula car and kart use, where it is possible to have a more ample view of the track and there is no risk of black frames.




Which Lense?




The narrow HFOV lens is preferred for closed-roof cars, as it “sees” the track just within the wind-screen pillars, reducing that unpleasant black frame around typical of generic camera on-board videos.




Narrow lense




The wide HFOV lens is specific for open-roof, formula car and kart use, where it is possible to have a more ample view of the track and there is no risk of black frames.




The wide HFOV lens




Front Mount Colour TFT Display For In-Car Installation




On-board cameras are to be installed inside the car. Where should the display be placed to check the correct position of the camera? The SmartyCam HD 128x128 pixel TFT colour display is on the front, not on rear – where general cameras place the viewfinder




Front Mount Color TFT Display




 High Motorsport Quality – Small Size Video Files




Most other HD cameras are focused on the highest pixel number. The result is that their video files are far too large, taking too much memory. SmartyCam HD videos have the same quality as other HD cameras but their files are smaller because the H264 compression system parameters have been optimised to a perfect balance between video quality and file size.

You can choose among three video file quality levels: one-hour recording takes 4GB (high quality), 2GB (normal) or 1,5GB (low). Files are stored on SD cards: with current SD cards reaching 128GB capacity, you can record more than 30 hours of high-quality videos without changing the card.





Aim SmartyCam HD




Designed To Withstand Extreme On-Track Working Conditions




Frail things have a bad time on track. An on-board camera designed for Motorsport, must guarantee great resistance against the extreme working conditions typical of track racing and against the most adverse weather, such as: strong and prolonged vibrations, storms, continuous rain, and extreme high and low temperatures.




Designed To Withstand Extreme On-Track Working Conditions




That is why SmartyCam HD Rev2 is made in machinery moulded aluminium used in many competition car parts. The SmartyCam HD Rev2 is the most robust and reliable system ever.




Designed To Withstand Extreme On-Track Working Conditions




Compact, handy and easy to Install




Its small size (87x63x49mm) and light weight (just 280g) make SmartyCam HD easy to install inside your car or on your bike.




Smartycam Motorsport Camera Systems
